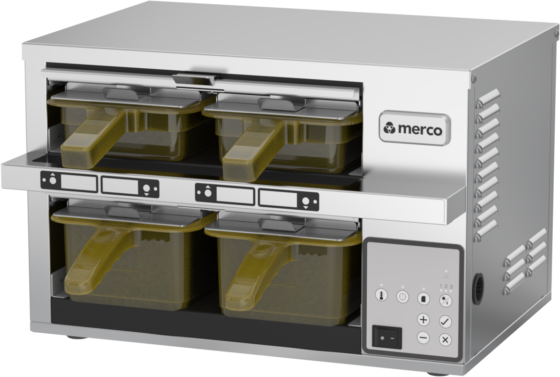

            MHS22 SAB1 N Timer Bar With Trays Right
            MHS22 SAB1 N Timer Bar With Trays Right
            MHG24 SAB1 N Timer Bar With Trays Right
            MHG32 SAB1 N Timer Bar With Trays Right
            MHG34 SAB1 N Timer Bar With Trays Right
            MHG42 SAB1 N Timer Bar With Trays Right
            Controller
            Layout
            Tray

            mercoMax™

            Timer Bar

            MercoMax is a high-capacity hot holding solution built for peak-service performance. Designed for busy operations, it combines powerful, even heat with independent zone control to keep a wide range of menu items at optimal serving temperatures. Its flexible configurations and durable construction  make it a reliable choice for front or back-of-house where speed, consistency, and quality matter most.

            Key FEATURES

            High-Capacity, Flexible Configurations

            Available in multiple lane and shelf options to fit volume demands and service flow—ideal for rush periods and varied product mixes.


            Duoheat Technology

            MercoMax units feature duoheat technology that delivers heat using the perfect combination of convected and radiant heat.


            Flexible Tray Seals

            Removable stainless-steel tray seals lock in moisture when needed or can be removed to preserve crispiness.


            Modular, Pass-Thru Ready

            Durable stainless-steel construction with single- or double-sided configurations and removable back panel for pass-thru use




            Features
            Standard Features
            • Duoheat Technology delivers heat using the perfect combination of convected and radiant heat
            • Optimized airflow surrounds the food and is climate controlled to maintain the perfect holding temperature
            • Adjustable temperature per zone (90–225 °F / 32–107 °C)
            • Compatible with removable stainless steel tray seals to customize moisture retention
            • Heavy-duty stainless steel body built for commercial durability
            • Pass-thru ready with removable back panel
            • Compatible with 1/3-size, 2.5” deep high-heat trays (trays not included)
            • (1N) suffix indicates a single sided unit
            • (2N) suffix indicates a double-sided unit, no back for dual service
            • Includes 6-ft. power cord
            Optional Features
            • 1/3 size, 2.5" deep single or double handle plastic trays
            • 1/3 size solid tray seal
            • 1/3 size vented tray seal
            • Stainless steel trivets
            Dimensions
            Width
            19.4" (49.2cm) - 40.6" (103.1 cm)
            Depth
            15.3" (38.8 cm)
            Height
            11.4" (29 cm) - 21.3" (54.1 cm)
            Shipping Weight
            56 lb. (25.4 kg) - 155-lb. (70.4 kg)
            Power Requirements
            Domestic
            Volts
            120V - 240V
            Amps
            7.7 A - 15.4 A
            Watts
            1300 W - 4247 W
            Hertz
            60 Hz
            Export
            Volts
            200V - 240V
            Amps
            5 A - 11.8 A
            Watts
            983 W - 2832 W
            Hertz
            50/60 Hz
            Certifications
            • CE
            • UL Listed
            • Classified UL EPH
            Specifications provided above are a range, please refer to the specification sheet for precise information.
